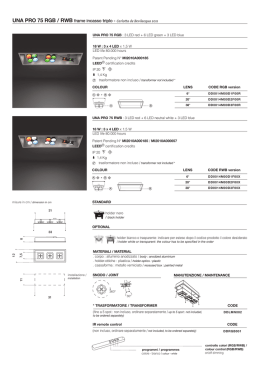

UNA PRO 75 RGB / RWB incasso doppio - Carlotta de Bevilacqua 2011
UNA PRO 75 RGB : 2 LED red + 4 LED green + 2 LED blue
12 W : 2 x 4 LED x 1,5 W
LED life 80.000 hours
Patent Pending N° MI2010A000185
LEED® certification credits
IP 20
0,9 Kg
T
trasformatore non incluso / transformer not included *
COLOUR
A
+ B
B
A
LENS
CODE RGB version
6°
DD0014L00D1AR
20°
DD0014L00D2AR
38°
DD0014L00D3AR
UNA PRO 75 RWB : 2 LED red + 4 LED neutral white + 2 LED blue
12 W : 2 x 4 LED x 1,5 W
LED life 80.000 hours
Patent Pending N° MI2010A000185 / MI2010A000657
LEED® certification credits
IP 20
0,9 Kg
T
trasformatore non incluso / transformer not included *
COLOUR
A
+ B
B
A
LENS
CODE RWB version
6°
DD0014L00D1AX
20°
DD0014L00D2AX
38°
DD0014L00D3AX
STANDARD
misure in cm / dimension in cm
.
21
.
8
. .
holder nero
/ black holder
OPTIONAL
.
7,5
.
. .
14,7
.
25
holder bianco o trasparente: indicare per esteso dopo il codice prodotto il colore desiderato
/ holder white or transparent: the colour has to be specified in the order
.
.
installazione /
11
installation
MATERIALI / MATERIAL
. corpo : alluminio anodizzato / body : anodized aluminium
. holder-ottiche : plastica / holder-optics : plastic
. cassaforma : metallo verniciato / recessed box : painted metal
.
.
21
.
SNODO / JOINT
MANUTENZIONE / MAINTENANCE
360°
30°
* TRASFORMATORE / TRANSFORMER
(fino a 5 spot : non incluso, ordinare separatamente / up to 5 spot : not included,
to be ordered separately)
CODE
DDLMN002
CODE
IR remote control
(non incluso, ordinare separatamente / not included, to be ordered separately)
programmi / programmes
colore - bianco / colour - white
DDRGB001
controllo colori (RGB/RWB) /
colour control (RGB/RWB)
on/off dimming
UNA PRO 75 RGB / RWB incasso doppio - Carlotta de Bevilacqua 2011
UNA PRO 75 RGB : 2 LED red + 4 LED green + 2 LED blue
12 W : 2 x 4 LED x 1,5 W
LED life 80.000 hours
Patent Pending N° MI2010A000185
LEED® certification credits
IP 20
0,9 Kg
T
trasformatore non incluso / transformer not included *
COLOUR
A
+ B
B
A
LENS
CODE RGB version
6°
DD0014L00D1BR
20°
DD0014L00D2BR
38°
DD0014L00D3BR
UNA PRO 75 RWB : 2 LED red + 4 LED neutral white + 2 LED blue
12 W : 2 x 4 LED x 1,5 W
LED life 80.000 hours
Patent Pending N° MI2010A000185 / MI2010A000657
LEED® certification credits
IP 20
0,9 Kg
T
trasformatore non incluso / transformer not included *
COLOUR
A
+ B
B
A
LENS
CODE RWB version
6°
DD0014L00D1BX
20°
DD0014L00D2BX
38°
DD0014L00D3BX
STANDARD
misure in cm / dimension in cm
.
21
.
8
. .
holder nero
/ black holder
OPTIONAL
.
7,5
.
. .
14,7
.
25
holder bianco o trasparente: indicare per esteso dopo il codice prodotto il colore desiderato
/ holder white or transparent: the colour has to be specified in the order
.
.
installazione /
11
installation
MATERIALI / MATERIAL
. corpo : alluminio verniciato / body : painted aluminium
. holder-ottiche : plastica / holder-optics : plastic
. cassaforma : metallo verniciato / recessed box : painted metal
.
.
21
.
SNODO / JOINT
MANUTENZIONE / MAINTENANCE
360°
30°
* TRASFORMATORE / TRANSFORMER
(fino a 5 spot : non incluso, ordinare separatamente / up to 5 spot : not included,
to be ordered separately)
CODE
DDLMN002
CODE
IR remote control
(non incluso, ordinare separatamente / not included, to be ordered separately)
programmi / programmes
colore - bianco / colour - white
DDRGB001
controllo colori (RGB/RWB) /
colour control (RGB/RWB)
on/off dimming
UNA PRO 75 RGB / RWB incasso doppio - Carlotta de Bevilacqua 2011
UNA PRO 75 RGB : 2 LED red + 4 LED green + 2 LED blue
12 W : 2 x 4 LED x 1,5 W
LED life 80.000 hours
Patent Pending N° MI2010A000185
LEED® certification credits
IP 20
0,9 Kg
T
trasformatore non incluso / transformer not included *
COLOUR
A
+ B
B
A
LENS
CODE RGB version
6°
DD0014L00D1R
20°
DD0014L00D2R
38°
DD0014L00D3R
UNA PRO 75 RWB : 2 LED red + 4 LED neutral white + 2 LED blue
12 W : 2 x 4 LED x 1,5 W
LED life 80.000 hours
Patent Pending N° MI2010A000185 / MI2010A000657
LEED® certification credits
IP 20
0,9 Kg
T
trasformatore non incluso / transformer not included *
COLOUR
A
+ B
B
A
LENS
CODE RWB version
6°
DD0014L00D1X
20°
DD0014L00D2X
38°
DD0014L00D3X
STANDARD
misure in cm / dimension in cm
.
21
.
8
. .
holder nero
/ black holder
OPTIONAL
.
7,5
.
. .
14,7
.
25
holder bianco o trasparente: indicare per esteso dopo il codice prodotto il colore desiderato
/ holder white or transparent: the colour has to be specified in the order
.
.
installazione /
11
installation
MATERIALI / MATERIAL
. corpo : alluminio anodizzato / body : anodized aluminium
. holder-ottiche : plastica / holder-optics : plastic
. cassaforma : metallo verniciato / recessed box : painted metal
.
.
21
.
SNODO / JOINT
MANUTENZIONE / MAINTENANCE
360°
30°
* TRASFORMATORE / TRANSFORMER
(fino a 5 spot : non incluso, ordinare separatamente / up to 5 spot : not included,
to be ordered separately)
CODE
DDLMN002
CODE
IR remote control
(non incluso, ordinare separatamente / not included, to be ordered separately)
programmi / programmes
colore - bianco / colour - white
DDRGB001
controllo colori (RGB/RWB) /
colour control (RGB/RWB)
on/off dimming
UNA PRO 75 RGB / RWB incasso doppio - Carlotta de Bevilacqua 2011
UNA PRO 75 RGB : 2 LED red + 4 LED green + 2 LED blue
12 W : 2 x 4 LED x 1,5 W
LED life 80.000 hours
Patent Pending N° MI2010A000185
LEED® certification credits
IP 20
0,9 Kg
T
trasformatore non incluso / transformer not included *
COLOUR
A
+ B
B
A
LENS
CODE RGB version
6°
DD0014L10D1AR
20°
DD0014L10D2AR
38°
DD0014L10D3AR
UNA PRO 75 RWB : 2 LED red + 4 LED neutral white + 2 LED blue
12 W : 2 x 4 LED x 1,5 W
LED life 80.000 hours
Patent Pending N° MI2010A000185 / MI2010A000657
LEED® certification credits
IP 20
0,9 Kg
T
trasformatore non incluso / transformer not included *
COLOUR
A
+ B
B
A
LENS
CODE RWB version
6°
DD0014L10D1AX
20°
DD0014L10D2AX
38°
DD0014L10D3AX
STANDARD
misure in cm / dimension in cm
.
21
.
8
. .
holder nero
/ black holder
OPTIONAL
.
7,5
.
. .
14,7
.
25
holder bianco o trasparente: indicare per esteso dopo il codice prodotto il colore desiderato
/ holder white or transparent: the colour has to be specified in the order
.
.
installazione /
11
installation
MATERIALI / MATERIAL
. corpo : alluminio verniciato / body : painted aluminium
. holder-ottiche : plastica / holder-optics : plastic
. cassaforma : metallo verniciato / recessed box : painted metal
.
.
21
.
SNODO / JOINT
MANUTENZIONE / MAINTENANCE
360°
30°
* TRASFORMATORE / TRANSFORMER
(fino a 5 spot : non incluso, ordinare separatamente / up to 5 spot : not included,
to be ordered separately)
CODE
DDLMN002
CODE
IR remote control
(non incluso, ordinare separatamente / not included, to be ordered separately)
programmi / programmes
colore - bianco / colour - white
DDRGB001
controllo colori (RGB/RWB) /
colour control (RGB/RWB)
on/off dimming
UNA PRO 75 RGB / RWB incasso doppio - Carlotta de Bevilacqua 2011
UNA PRO 75 RGB : 2 LED red + 4 LED green + 2 LED blue
12 W : 2 x 4 LED x 1,5 W
LED life 80.000 hours
Patent Pending N° MI2010A000185
LEED® certification credits
IP 20
0,9 Kg
T
trasformatore non incluso / transformer not included *
COLOUR
A
+ B
B
A
LENS
CODE RGB version
6°
DD0014L10D1BR
20°
DD0014L10D2BR
38°
DD0014L10D3BR
UNA PRO 75 RWB : 2 LED red + 4 LED neutral white + 2 LED blue
12 W : 2 x 4 LED x 1,5 W
LED life 80.000 hours
Patent Pending N° MI2010A000185 / MI2010A000657
LEED® certification credits
IP 20
0,9 Kg
T
trasformatore non incluso / transformer not included *
COLOUR
A
+ B
B
A
LENS
CODE RWB version
6°
DD0014L10D1BX
20°
DD0014L10D2BX
38°
DD0014L10D3BX
STANDARD
misure in cm / dimension in cm
.
21
.
8
. .
holder nero
/ black holder
OPTIONAL
.
7,5
.
. .
14,7
.
25
holder bianco o trasparente: indicare per esteso dopo il codice prodotto il colore desiderato
/ holder white or transparent: the colour has to be specified in the order
.
.
installazione /
11
installation
MATERIALI / MATERIAL
. corpo : alluminio verniciato / body : painted aluminium
. holder-ottiche : plastica / holder-optics : plastic
. cassaforma : metallo verniciato / recessed box : painted metal
.
.
21
.
SNODO / JOINT
MANUTENZIONE / MAINTENANCE
360°
30°
* TRASFORMATORE / TRANSFORMER
(fino a 5 spot : non incluso, ordinare separatamente / up to 5 spot : not included,
to be ordered separately)
CODE
DDLMN002
CODE
IR remote control
(non incluso, ordinare separatamente / not included, to be ordered separately)
programmi / programmes
colore - bianco / colour - white
DDRGB001
controllo colori (RGB/RWB) /
colour control (RGB/RWB)
on/off dimming
UNA PRO 75 RGB / RWB incasso doppio - Carlotta de Bevilacqua 2011
UNA PRO 75 RGB : 2 LED red + 4 LED green + 2 LED blue
12 W : 2 x 4 LED x 1,5 W
LED life 80.000 hours
Patent Pending N° MI2010A000185
LEED® certification credits
IP 20
0,9 Kg
T
trasformatore non incluso / transformer not included *
COLOUR
A
+ B
B
A
LENS
CODE RGB version
6°
DD0014L10D1R
20°
DD0014L10D2R
38°
DD0014L10D3R
UNA PRO 75 RWB : 2 LED red + 4 LED neutral white + 2 LED blue
12 W : 2 x 4 LED x 1,5 W
LED life 80.000 hours
Patent Pending N° MI2010A000185 / MI2010A000657
LEED® certification credits
IP 20
0,9 Kg
T
trasformatore non incluso / transformer not included *
COLOUR
A
+ B
B
A
LENS
CODE RWB version
6°
DD0014L10D1X
20°
DD0014L10D2X
38°
DD0014L10D3X
STANDARD
misure in cm / dimension in cm
.
21
.
8
. .
holder nero
/ black holder
OPTIONAL
.
7,5
.
. .
14,7
.
25
holder bianco o trasparente: indicare per esteso dopo il codice prodotto il colore desiderato
/ holder white or transparent: the colour has to be specified in the order
.
.
installazione /
11
installation
MATERIALI / MATERIAL
. corpo : alluminio verniciato / body : painted aluminium
. holder-ottiche : plastica / holder-optics : plastic
. cassaforma : metallo verniciato / recessed box : painted metal
.
.
21
.
SNODO / JOINT
MANUTENZIONE / MAINTENANCE
360°
30°
* TRASFORMATORE / TRANSFORMER
(fino a 5 spot : non incluso, ordinare separatamente / up to 5 spot : not included,
to be ordered separately)
CODE
DDLMN002
CODE
IR remote control
(non incluso, ordinare separatamente / not included, to be ordered separately)
programmi / programmes
colore - bianco / colour - white
DDRGB001
controllo colori (RGB/RWB) /
colour control (RGB/RWB)
on/off dimming
UNA PRO 75 RGB / RWB incasso doppio - Carlotta de Bevilacqua 2011
UNA PRO 75 RGB : 2 LED red + 4 LED green + 2 LED blue
12 W : 2 x 4 LED x 1,5 W
LED life 80.000 hours
Patent Pending N° MI2010A000185
LEED® certification credits
IP 20
0,9 Kg
T
trasformatore non incluso / transformer not included *
COLOUR
A
+ B
B
A
LENS
CODE RGB version
6°
DD0014L09D1AR
20°
DD0014L09D2AR
38°
DD0014L09D3AR
UNA PRO 75 RWB : 2 LED red + 4 LED neutral white + 2 LED blue
12 W : 2 x 4 LED x 1,5 W
LED life 80.000 hours
Patent Pending N° MI2010A000185 / MI2010A000657
LEED® certification credits
IP 20
0,9 Kg
T
trasformatore non incluso / transformer not included *
COLOUR
A
+ B
B
A
LENS
CODE RWB version
6°
DD0014L09D1AX
20°
DD0014L09D2AX
38°
DD0014L09D3AX
STANDARD
misure in cm / dimension in cm
.
21
.
8
. .
holder nero
/ black holder
OPTIONAL
.
7,5
.
. .
14,7
.
25
holder bianco o trasparente: indicare per esteso dopo il codice prodotto il colore desiderato
/ holder white or transparent: the colour has to be specified in the order
.
.
installazione /
11
installation
MATERIALI / MATERIAL
. corpo : alluminio verniciato / body : painted aluminium
. holder-ottiche : plastica / holder-optics : plastic
. cassaforma : metallo verniciato / recessed box : painted metal
.
.
21
.
SNODO / JOINT
MANUTENZIONE / MAINTENANCE
360°
30°
* TRASFORMATORE / TRANSFORMER
(fino a 5 spot : non incluso, ordinare separatamente / up to 5 spot : not included,
to be ordered separately)
CODE
DDLMN002
CODE
IR remote control
(non incluso, ordinare separatamente / not included, to be ordered separately)
programmi / programmes
colore - bianco / colour - white
DDRGB001
controllo colori (RGB/RWB) /
colour control (RGB/RWB)
on/off dimming
UNA PRO 75 RGB / RWB incasso doppio - Carlotta de Bevilacqua 2011
UNA PRO 75 RGB : 2 LED red + 4 LED green + 2 LED blue
12 W : 2 x 4 LED x 1,5 W
LED life 80.000 hours
Patent Pending N° MI2010A000185
LEED® certification credits
IP 20
0,9 Kg
T
trasformatore non incluso / transformer not included *
COLOUR
A
+ B
B
A
LENS
CODE RGB version
6°
DD0014L09D1BR
20°
DD0014L09D2BR
38°
DD0014L09D3BR
UNA PRO 75 RWB : 2 LED red + 4 LED neutral white + 2 LED blue
12 W : 2 x 4 LED x 1,5 W
LED life 80.000 hours
Patent Pending N° MI2010A000185 / MI2010A000657
LEED® certification credits
IP 20
0,9 Kg
T
trasformatore non incluso / transformer not included *
COLOUR
A
+ B
B
A
LENS
CODE RWB version
6°
DD0014L09D1BX
20°
DD0014L09D2BX
38°
DD0014L09D3BX
STANDARD
misure in cm / dimension in cm
.
21
.
8
. .
holder nero
/ black holder
OPTIONAL
.
7,5
.
. .
14,7
.
25
holder bianco o trasparente: indicare per esteso dopo il codice prodotto il colore desiderato
/ holder white or transparent: the colour has to be specified in the order
.
.
installazione /
11
installation
MATERIALI / MATERIAL
. corpo : alluminio verniciato / body : painted aluminium
. holder-ottiche : plastica / holder-optics : plastic
. cassaforma : metallo verniciato / recessed box : painted metal
.
.
21
.
SNODO / JOINT
MANUTENZIONE / MAINTENANCE
360°
30°
* TRASFORMATORE / TRANSFORMER
(fino a 5 spot : non incluso, ordinare separatamente / up to 5 spot : not included,
to be ordered separately)
CODE
DDLMN002
CODE
IR remote control
(non incluso, ordinare separatamente / not included, to be ordered separately)
programmi / programmes
colore - bianco / colour - white
DDRGB001
controllo colori (RGB/RWB) /
colour control (RGB/RWB)
on/off dimming
UNA PRO 75 RGB / RWB incasso doppio - Carlotta de Bevilacqua 2011
UNA PRO 75 RGB : 2 LED red + 4 LED green + 2 LED blue
12 W : 2 x 4 LED x 1,5 W
LED life 80.000 hours
Patent Pending N° MI2010A000185
LEED® certification credits
IP 20
0,9 Kg
T
trasformatore non incluso / transformer not included *
COLOUR
A
+ B
B
A
LENS
CODE RGB version
6°
DD0014L09D1R
20°
DD0014L09D2R
38°
DD0014L09D3R
UNA PRO 75 RWB : 2 LED red + 4 LED neutral white + 2 LED blue
12 W : 2 x 4 LED x 1,5 W
LED life 80.000 hours
Patent Pending N° MI2010A000185 / MI2010A000657
LEED® certification credits
IP 20
0,9 Kg
T
trasformatore non incluso / transformer not included *
COLOUR
A
+ B
B
A
LENS
CODE RWB version
6°
DD0014L09D1X
20°
DD0014L09D2X
38°
DD0014L09D3X
STANDARD
misure in cm / dimension in cm
.
21
.
8
. .
holder nero
/ black holder
OPTIONAL
.
7,5
.
. .
14,7
.
25
holder bianco o trasparente: indicare per esteso dopo il codice prodotto il colore desiderato
/ holder white or transparent: the colour has to be specified in the order
.
.
installazione /
11
installation
MATERIALI / MATERIAL
. corpo : alluminio verniciato / body : painted aluminium
. holder-ottiche : plastica / holder-optics : plastic
. cassaforma : metallo verniciato / recessed box : painted metal
.
.
21
.
SNODO / JOINT
MANUTENZIONE / MAINTENANCE
360°
30°
* TRASFORMATORE / TRANSFORMER
(fino a 5 spot : non incluso, ordinare separatamente / up to 5 spot : not included,
to be ordered separately)
CODE
DDLMN002
CODE
IR remote control
(non incluso, ordinare separatamente / not included, to be ordered separately)
programmi / programmes
colore - bianco / colour - white
DDRGB001
controllo colori (RGB/RWB) /
colour control (RGB/RWB)
on/off dimming
