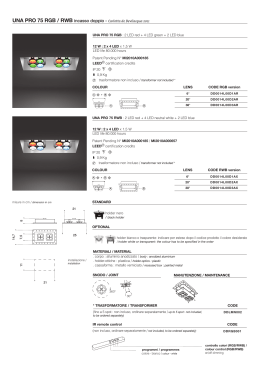

UNA PRO 75 RGB / RWB frame incasso triplo - Carlotta de Bevilacqua 2011
UNA PRO 75 RGB : 3 LED red + 6 LED green + 3 LED blue
18 W : 3 x 4 LED x 1,5 W
LED life 80.000 hours
Patent Pending N° MI2010A000185
LEED® certification credits
IP 20
1,4 Kg
T
trasformatore non incluso / transformer not included *
COLOUR
A
+ B
B
A
LENS
CODE RGB version
6°
DD0014M00D1F00R
20°
DD0014M00D2F00R
38°
DD0014M00D3F00R
UNA PRO 75 RWB : 3 LED red + 6 LED neutral white + 3 LED blue
18 W : 3 x 4 LED x 1,5 W
LED life 80.000 hours
Patent Pending N° MI2010A000185 / MI2010A000657
LEED® certification credits
IP 20
1,4 Kg
T
trasformatore non incluso / transformer not included *
COLOUR
A
+ B
B
A
CODE RWB version
6°
DD0014M00D1F00X
20°
DD0014M00D2F00X
38°
DD0014M00D3F00X
STANDARD
misure in cm / dimension in cm
.
.
31
LENS
holder nero
/ black holder
OPTIONAL
.
.
33
8
. .
holder bianco o trasparente: indicare per esteso dopo il codice prodotto il colore desiderato
/ holder white or transparent: the colour has to be specified in the order
7,5
. .
12
.
MATERIALI / MATERIAL
. corpo : alluminio anodizzato / body : anodized aluminium
. holder-ottiche : plastica / holder-optics : plastic
. cassaforma : metallo verniciato / recessed box : painted metal
.
.
installazione /
11
installation
SNODO / JOINT
MANUTENZIONE / MAINTENANCE
.
.
31
.
360°
30°
* TRASFORMATORE / TRANSFORMER
(fino a 5 spot : non incluso, ordinare separatamente / up to 5 spot : not included,
to be ordered separately)
CODE
DDLMN002
CODE
IR remote control
(non incluso, ordinare separatamente / not included, to be ordered separately)
programmi / programmes
colore - bianco / colour - white
DDRGB001
controllo colori (RGB/RWB) /
colour control (RGB/RWB)
on/off dimming
UNA PRO 75 RGB / RWB frame incasso triplo - Carlotta de Bevilacqua 2011
UNA PRO 75 RGB : 3 LED red + 6 LED green + 3 LED blue
18 W : 3 x 4 LED x 1,5 W
LED life 80.000 hours
Patent Pending N° MI2010A000185
LEED® certification credits
IP 20
1,4 Kg
T
trasformatore non incluso / transformer not included *
COLOUR
A
+ B
B
A
LENS
CODE RGB version
6°
DD0014M00D1F10R
20°
DD0014M00D2F10R
38°
DD0014M00D3F10R
UNA PRO 75 RWB : 3 LED red + 6 LED neutral white + 3 LED blue
18 W : 3 x 4 LED x 1,5 W
LED life 80.000 hours
Patent Pending N° MI2010A000185 / MI2010A000657
LEED® certification credits
IP 20
1,4 Kg
T
trasformatore non incluso / transformer not included *
COLOUR
A
+ B
B
A
CODE RWB version
6°
DD0014M00D1F10X
20°
DD0014M00D2F10X
38°
DD0014M00D3F10X
STANDARD
misure in cm / dimension in cm
.
.
31
LENS
holder nero
/ black holder
OPTIONAL
.
.
33
8
. .
holder bianco o trasparente: indicare per esteso dopo il codice prodotto il colore desiderato
/ holder white or transparent: the colour has to be specified in the order
7,5
. .
12
.
MATERIALI / MATERIAL
. corpo : alluminio anodizzato / body : anodized aluminium
. holder-ottiche : plastica / holder-optics : plastic
. cassaforma : metallo verniciato / recessed box : painted metal
.
.
installazione /
11
installation
SNODO / JOINT
MANUTENZIONE / MAINTENANCE
.
.
31
.
360°
30°
* TRASFORMATORE / TRANSFORMER
(fino a 5 spot : non incluso, ordinare separatamente / up to 5 spot : not included,
to be ordered separately)
CODE
DDLMN002
CODE
IR remote control
(non incluso, ordinare separatamente / not included, to be ordered separately)
programmi / programmes
colore - bianco / colour - white
DDRGB001
controllo colori (RGB/RWB) /
colour control (RGB/RWB)
on/off dimming
UNA PRO 75 RGB / RWB frame incasso triplo - Carlotta de Bevilacqua 2011
UNA PRO 75 RGB : 3 LED red + 6 LED green + 3 LED blue
18 W : 3 x 4 LED x 1,5 W
LED life 80.000 hours
Patent Pending N° MI2010A000185
LEED® certification credits
IP 20
1,4 Kg
T
trasformatore non incluso / transformer not included *
COLOUR
A
+ B
B
A
LENS
CODE RGB version
6°
DD0014M00D1F09R
20°
DD0014M00D2F09R
38°
DD0014M00D3F09R
UNA PRO 75 RWB : 3 LED red + 6 LED neutral white + 3 LED blue
18 W : 3 x 4 LED x 1,5 W
LED life 80.000 hours
Patent Pending N° MI2010A000185 / MI2010A000657
LEED® certification credits
IP 20
1,4 Kg
T
trasformatore non incluso / transformer not included *
COLOUR
A
+ B
B
A
CODE RWB version
6°
DD0014M00D1F09X
20°
DD0014M00D2F09X
38°
DD0014M00D3F09X
STANDARD
misure in cm / dimension in cm
.
.
31
LENS
holder nero
/ black holder
OPTIONAL
.
.
33
8
. .
holder bianco o trasparente: indicare per esteso dopo il codice prodotto il colore desiderato
/ holder white or transparent: the colour has to be specified in the order
7,5
. .
12
.
MATERIALI / MATERIAL
. corpo : alluminio anodizzato / body : anodized aluminium
. holder-ottiche : plastica / holder-optics : plastic
. cassaforma : metallo verniciato / recessed box : painted metal
.
.
installazione /
11
installation
SNODO / JOINT
MANUTENZIONE / MAINTENANCE
.
.
31
.
360°
30°
* TRASFORMATORE / TRANSFORMER
(fino a 5 spot : non incluso, ordinare separatamente / up to 5 spot : not included,
to be ordered separately)
CODE
DDLMN002
CODE
IR remote control
(non incluso, ordinare separatamente / not included, to be ordered separately)
programmi / programmes
colore - bianco / colour - white
DDRGB001
controllo colori (RGB/RWB) /
colour control (RGB/RWB)
on/off dimming
UNA PRO 75 RGB / RWB frame incasso triplo - Carlotta de Bevilacqua 2011
UNA PRO 75 RGB : 3 LED red + 6 LED green + 3 LED blue
18 W : 3 x 4 LED x 1,5 W
LED life 80.000 hours
Patent Pending N° MI2010A000185
LEED® certification credits
IP 20
1,4 Kg
T
trasformatore non incluso / transformer not included *
COLOUR
A
+ B
B
A
LENS
CODE RGB version
6°
DD0014M10D1F00R
20°
DD0014M10D2F00R
38°
DD0014M10D3F00R
UNA PRO 75 RWB : 3 LED red + 6 LED neutral white + 3 LED blue
18 W : 3 x 4 LED x 1,5 W
LED life 80.000 hours
Patent Pending N° MI2010A000185 / MI2010A000657
LEED® certification credits
IP 20
1,4 Kg
T
trasformatore non incluso / transformer not included *
COLOUR
A
+ B
B
A
CODE RWB version
6°
DD0014M10D1F00X
20°
DD0014M10D2F00X
38°
DD0014M10D3F00X
STANDARD
misure in cm / dimension in cm
.
.
31
LENS
holder nero
/ black holder
OPTIONAL
.
.
33
8
. .
holder bianco o trasparente: indicare per esteso dopo il codice prodotto il colore desiderato
/ holder white or transparent: the colour has to be specified in the order
7,5
. .
12
.
MATERIALI / MATERIAL
. corpo : alluminio verniciato / body : painted aluminium
. holder-ottiche : plastica / holder-optics : plastic
. cassaforma : metallo verniciato / recessed box : painted metal
.
.
installazione /
11
installation
SNODO / JOINT
MANUTENZIONE / MAINTENANCE
.
.
31
.
360°
30°
* TRASFORMATORE / TRANSFORMER
(fino a 5 spot : non incluso, ordinare separatamente / up to 5 spot : not included,
to be ordered separately)
CODE
DDLMN002
CODE
IR remote control
(non incluso, ordinare separatamente / not included, to be ordered separately)
programmi / programmes
colore - bianco / colour - white
DDRGB001
controllo colori (RGB/RWB) /
colour control (RGB/RWB)
on/off dimming
UNA PRO 75 RGB / RWB frame incasso triplo - Carlotta de Bevilacqua 2011
UNA PRO 75 RGB : 3 LED red + 6 LED green + 3 LED blue
18 W : 3 x 4 LED x 1,5 W
LED life 80.000 hours
Patent Pending N° MI2010A000185
LEED® certification credits
IP 20
1,4 Kg
T
trasformatore non incluso / transformer not included *
COLOUR
A
+ B
B
A
LENS
CODE RGB version
6°
DD0014M10D1F10R
20°
DD0014M10D2F10R
38°
DD0014M10D3F10R
UNA PRO 75 RWB : 3 LED red + 6 LED neutral white + 3 LED blue
18 W : 3 x 4 LED x 1,5 W
LED life 80.000 hours
Patent Pending N° MI2010A000185 / MI2010A000657
LEED® certification credits
IP 20
1,4 Kg
T
trasformatore non incluso / transformer not included *
COLOUR
A
+ B
B
A
CODE RWB version
6°
DD0014M10D1F10X
20°
DD0014M10D2F10X
38°
DD0014M10D3F10X
STANDARD
misure in cm / dimension in cm
.
.
31
LENS
holder nero
/ black holder
OPTIONAL
.
.
33
8
. .
holder bianco o trasparente: indicare per esteso dopo il codice prodotto il colore desiderato
/ holder white or transparent: the colour has to be specified in the order
7,5
. .
12
.
MATERIALI / MATERIAL
. corpo : alluminio verniciato / body : painted aluminium
. holder-ottiche : plastica / holder-optics : plastic
. cassaforma : metallo verniciato / recessed box : painted metal
.
.
installazione /
11
installation
SNODO / JOINT
MANUTENZIONE / MAINTENANCE
.
.
31
.
360°
30°
* TRASFORMATORE / TRANSFORMER
(fino a 5 spot : non incluso, ordinare separatamente / up to 5 spot : not included,
to be ordered separately)
CODE
DDLMN002
CODE
IR remote control
(non incluso, ordinare separatamente / not included, to be ordered separately)
programmi / programmes
colore - bianco / colour - white
DDRGB001
controllo colori (RGB/RWB) /
colour control (RGB/RWB)
on/off dimming
UNA PRO 75 RGB / RWB frame incasso triplo - Carlotta de Bevilacqua 2011
UNA PRO 75 RGB : 3 LED red + 6 LED green + 3 LED blue
18 W : 3 x 4 LED x 1,5 W
LED life 80.000 hours
Patent Pending N° MI2010A000185
LEED® certification credits
IP 20
1,4 Kg
T
trasformatore non incluso / transformer not included *
COLOUR
A
+ B
B
A
LENS
CODE RGB version
6°
DD0014M10D1F09R
20°
DD0014M10D2F09R
38°
DD0014M10D3F09R
UNA PRO 75 RWB : 3 LED red + 6 LED neutral white + 3 LED blue
18 W : 3 x 4 LED x 1,5 W
LED life 80.000 hours
Patent Pending N° MI2010A000185 / MI2010A000657
LEED® certification credits
IP 20
1,4 Kg
T
trasformatore non incluso / transformer not included *
COLOUR
A
+ B
B
A
CODE RWB version
6°
DD0014M10D1F09X
20°
DD0014M10D2F09X
38°
DD0014M10D3F09X
STANDARD
misure in cm / dimension in cm
.
.
31
LENS
holder nero
/ black holder
OPTIONAL
.
.
33
8
. .
holder bianco o trasparente: indicare per esteso dopo il codice prodotto il colore desiderato
/ holder white or transparent: the colour has to be specified in the order
7,5
. .
12
.
MATERIALI / MATERIAL
. corpo : alluminio verniciato / body : painted aluminium
. holder-ottiche : plastica / holder-optics : plastic
. cassaforma : metallo verniciato / recessed box : painted metal
.
.
installazione /
11
installation
SNODO / JOINT
MANUTENZIONE / MAINTENANCE
.
.
31
.
360°
30°
* TRASFORMATORE / TRANSFORMER
(fino a 5 spot : non incluso, ordinare separatamente / up to 5 spot : not included,
to be ordered separately)
CODE
DDLMN002
CODE
IR remote control
(non incluso, ordinare separatamente / not included, to be ordered separately)
programmi / programmes
colore - bianco / colour - white
DDRGB001
controllo colori (RGB/RWB) /
colour control (RGB/RWB)
on/off dimming
UNA PRO 75 RGB / RWB frame incasso triplo - Carlotta de Bevilacqua 2011
UNA PRO 75 RGB : 3 LED red + 6 LED green + 3 LED blue
18 W : 3 x 4 LED x 1,5 W
LED life 80.000 hours
Patent Pending N° MI2010A000185
LEED® certification credits
IP 20
1,4 Kg
T
trasformatore non incluso / transformer not included *
COLOUR
A
+ B
B
A
LENS
CODE RGB version
6°
DD0014M09D1F00R
20°
DD0014M09D2F00R
38°
DD0014M09D3F00R
UNA PRO 75 RWB : 3 LED red + 6 LED neutral white + 3 LED blue
18 W : 3 x 4 LED x 1,5 W
LED life 80.000 hours
Patent Pending N° MI2010A000185 / MI2010A000657
LEED® certification credits
IP 20
1,4 Kg
T
trasformatore non incluso / transformer not included *
COLOUR
A
+ B
B
A
CODE RWB version
6°
DD0014M09D1F00X
20°
DD0014M09D2F00X
38°
DD0014M09D3F00X
STANDARD
misure in cm / dimension in cm
.
.
31
LENS
holder nero
/ black holder
OPTIONAL
.
.
33
8
. .
holder bianco o trasparente: indicare per esteso dopo il codice prodotto il colore desiderato
/ holder white or transparent: the colour has to be specified in the order
7,5
. .
12
.
MATERIALI / MATERIAL
. corpo : alluminio verniciato / body : painted aluminium
. holder-ottiche : plastica / holder-optics : plastic
. cassaforma : metallo verniciato / recessed box : painted metal
.
.
installazione /
11
installation
SNODO / JOINT
MANUTENZIONE / MAINTENANCE
.
.
31
.
360°
30°
* TRASFORMATORE / TRANSFORMER
(fino a 5 spot : non incluso, ordinare separatamente / up to 5 spot : not included,
to be ordered separately)
CODE
DDLMN002
CODE
IR remote control
(non incluso, ordinare separatamente / not included, to be ordered separately)
programmi / programmes
colore - bianco / colour - white
DDRGB001
controllo colori (RGB/RWB) /
colour control (RGB/RWB)
on/off dimming
UNA PRO 75 RGB / RWB frame incasso triplo - Carlotta de Bevilacqua 2011
UNA PRO 75 RGB : 3 LED red + 6 LED green + 3 LED blue
18 W : 3 x 4 LED x 1,5 W
LED life 80.000 hours
Patent Pending N° MI2010A000185
LEED® certification credits
IP 20
1,4 Kg
T
trasformatore non incluso / transformer not included *
COLOUR
A
+ B
B
A
LENS
CODE RGB version
6°
DD0014M09D1F10R
20°
DD0014M09D2F10R
38°
DD0014M09D3F10R
UNA PRO 75 RWB : 3 LED red + 6 LED neutral white + 3 LED blue
18 W : 3 x 4 LED x 1,5 W
LED life 80.000 hours
Patent Pending N° MI2010A000185 / MI2010A000657
LEED® certification credits
IP 20
1,4 Kg
T
trasformatore non incluso / transformer not included *
COLOUR
A
+ B
B
A
CODE RWB version
6°
DD0014M09D1F10X
20°
DD0014M09D2F10X
38°
DD0014M09D3F10X
STANDARD
misure in cm / dimension in cm
.
.
31
LENS
holder nero
/ black holder
OPTIONAL
.
.
33
8
. .
holder bianco o trasparente: indicare per esteso dopo il codice prodotto il colore desiderato
/ holder white or transparent: the colour has to be specified in the order
7,5
. .
12
.
MATERIALI / MATERIAL
. corpo : alluminio verniciato / body : painted aluminium
. holder-ottiche : plastica / holder-optics : plastic
. cassaforma : metallo verniciato / recessed box : painted metal
.
.
installazione /
11
installation
SNODO / JOINT
MANUTENZIONE / MAINTENANCE
.
.
31
.
360°
30°
* TRASFORMATORE / TRANSFORMER
(fino a 5 spot : non incluso, ordinare separatamente / up to 5 spot : not included,
to be ordered separately)
CODE
DDLMN002
CODE
IR remote control
(non incluso, ordinare separatamente / not included, to be ordered separately)
programmi / programmes
colore - bianco / colour - white
DDRGB001
controllo colori (RGB/RWB) /
colour control (RGB/RWB)
on/off dimming
UNA PRO 75 RGB / RWB frame incasso triplo - Carlotta de Bevilacqua 2011
UNA PRO 75 RGB : 3 LED red + 6 LED green + 3 LED blue
18 W : 3 x 4 LED x 1,5 W
LED life 80.000 hours
Patent Pending N° MI2010A000185
LEED® certification credits
IP 20
1,4 Kg
T
trasformatore non incluso / transformer not included *
COLOUR
A
+ B
B
A
LENS
CODE RGB version
6°
DD0014M09D1F09R
20°
DD0014M09D2F09R
38°
DD0014M09D3F09R
UNA PRO 75 RWB : 3 LED red + 6 LED neutral white + 3 LED blue
18 W : 3 x 4 LED x 1,5 W
LED life 80.000 hours
Patent Pending N° MI2010A000185 / MI2010A000657
LEED® certification credits
IP 20
1,4 Kg
T
trasformatore non incluso / transformer not included *
COLOUR
A
+ B
B
A
CODE RWB version
6°
DD0014M09D1F09X
20°
DD0014M09D2F09X
38°
DD0014M09D3F09X
STANDARD
misure in cm / dimension in cm
.
.
31
LENS
holder nero
/ black holder
OPTIONAL
.
.
33
8
. .
holder bianco o trasparente: indicare per esteso dopo il codice prodotto il colore desiderato
/ holder white or transparent: the colour has to be specified in the order
7,5
. .
12
.
MATERIALI / MATERIAL
. corpo : alluminio verniciato / body : painted aluminium
. holder-ottiche : plastica / holder-optics : plastic
. cassaforma : metallo verniciato / recessed box : painted metal
.
.
installazione /
11
installation
SNODO / JOINT
MANUTENZIONE / MAINTENANCE
.
.
31
.
360°
30°
* TRASFORMATORE / TRANSFORMER
(fino a 5 spot : non incluso, ordinare separatamente / up to 5 spot : not included,
to be ordered separately)
CODE
DDLMN002
CODE
IR remote control
(non incluso, ordinare separatamente / not included, to be ordered separately)
programmi / programmes
colore - bianco / colour - white
DDRGB001
controllo colori (RGB/RWB) /
colour control (RGB/RWB)
on/off dimming
